- ARM Octa-core CPU with two Arm ‘Big’ Cores
- Android 11 OS and 8GB RAM+128GB storage
- 8 inch FHD screen with 10-point touch
- Dual 5G (SA/NSA) network support
- High speed 4G LTE and dual-band Wi-Fi 5
- Upgrade BT 5.1, fast and more stable
- Supports multi-function NFC, optional Professional 2D scanner
- Supports GPS / GLONASS / GALILEO / BDS
- Equipped with multiple accessories, like docking charger, hand-strap
- IP65 Waterproof and Dustproof
- Impact resistance: Drop from a height of 1.22 meter
- Built to operate in extreme temperatures

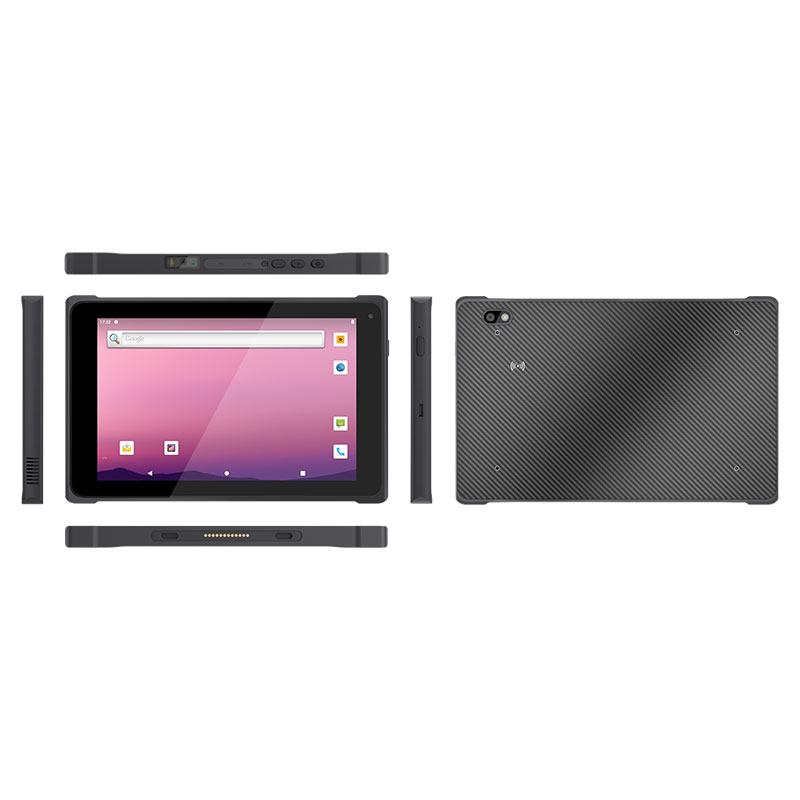

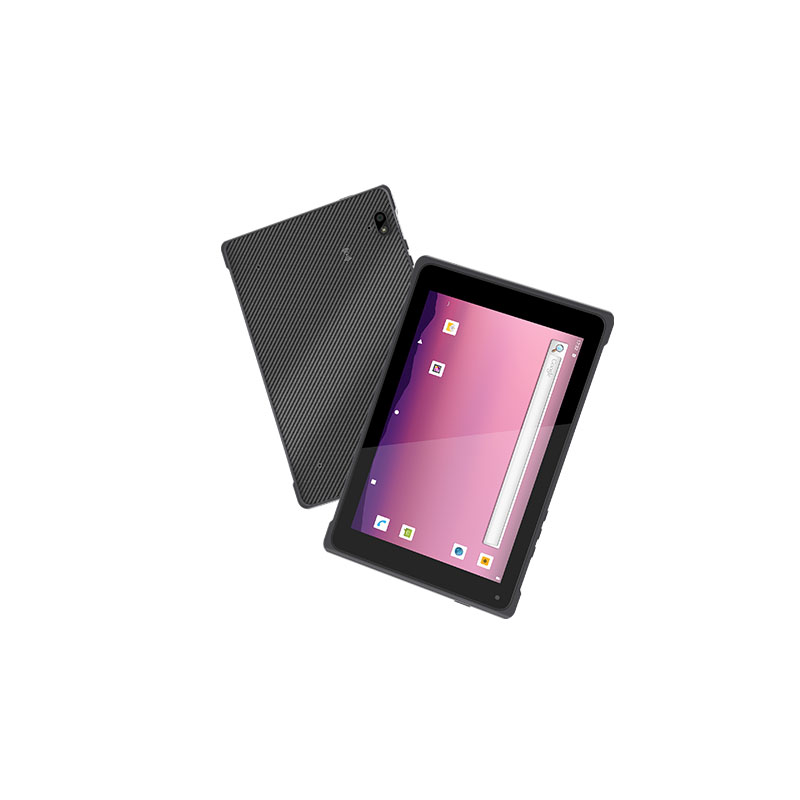

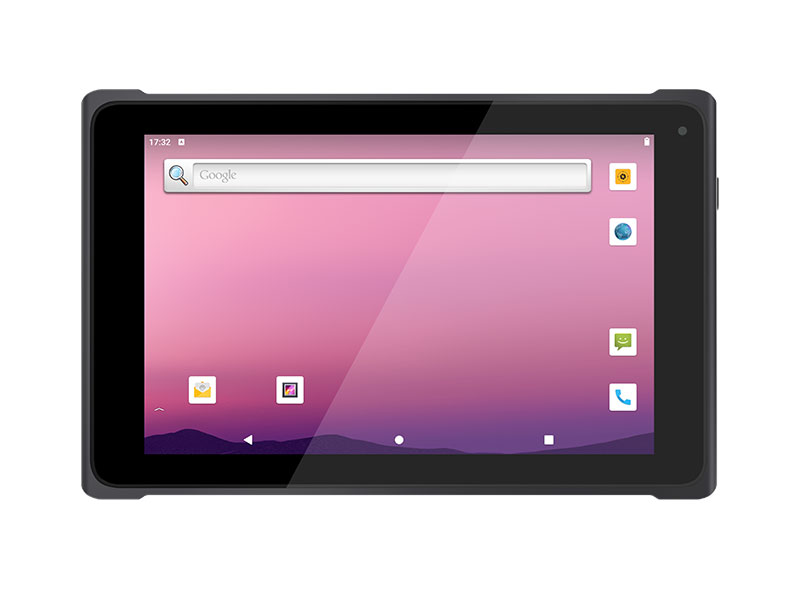

Other Pictures


· Specifications
| Basic Parameters |
| Dimension | 219 x 139 x 12.5mm |
| Device Color | Black |
| Weight | 524g |
| LCD | 8 inch FHD 16:10, 1200×1920, 550nits |
| Touch Panel | 10 point G+G capacitive touch screen |
| Camera | Front 5.0MP Rear 13.0MP |
| I/O | USB Type-C x 1, SIM Card x 2, TF Card x 1, (Two out of three Cato) 12PIN Pogo Pin x 1 |
| Power | USB Type-C interface, support fast charging PE + 2.0, Maximum Power 18W, Maximum 9V/2A. |
| Battery |
| Capacity | 3.8V/7200mAh |
| Type | Built-in Li-polymer battery |
| Endurance | 13hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Performance Parameter |
| CPU | ARM (5G-C) (Octa-Core) |
| OS | Android 11/GMS |
| RAM | 8GB |
| ROM | 128GB |
| Communication |
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5.0G or 5.1G+5.8G) |
| Bluetooth | BT5.1 (Transmission distance: 10m) |
| 2G/3G/4G/5G | GSM:B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 TDD:B34/B38/B39/B40/B41 FDD:B1/B2/B3/B4/B5/B7/B8/B17/B20/B28a/B28b 5G:N1/N3/N5/N28/N38/N41/N77/N78/N79 |
| GNSS | Support GPS/Galileo/GLONASS/BeiDou(G+G+G+B)SBAS |
| Reliability |
| Operate Temperature | -10 °C ~ 50 °C |
| Store Temperature | -20 °C ~60 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.22m |
| Data Collection |
| NFC | Built-in, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092 mifare protocols Card reading distance: 2.5-4cm |
| 2D | Optical resolution: ≥3mil Code system: 1D:Code128、EAN-13、EAN-8、UPC-E、UPC-A、 ISBN、ISSN、Code11、Interleaved 2 of 5、 Code39、Code93、Code32、Codabar、Matrix 2 of 5、 Industrial 25、IATA25、MSI Plessey、GS1 DataBar、Plessey、Febraban、Composite 2D:QR Code、Micro QR、Data Matrix、PDF417、 Micro PDF417、Aztec、Maxicode、Han Xin code、Dotcode |
