- Intel Core i5-1235U/i7-1255U processor
- Windows 11/10 OS and 16GB RAM＋128GB storage
- 10.1 inch IPS Full HD screen with 10-point capacitive touch
- 2.4G+5.8G Dual band WIFI 6
- High speed 4G LTE
- BT 5.1 fast transmission
- Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet, DB9 and USB2.0 )
- Support GPS, BDS and GLONASS
- Equipped with multiple accessories, like docking charger, hand-strap, vehicle mount, carry handle
- IP65 Waterproof and Dustproof, Anti-Static
- Vibration & 1.22m drop resistant
- MIL-STD-810G certified

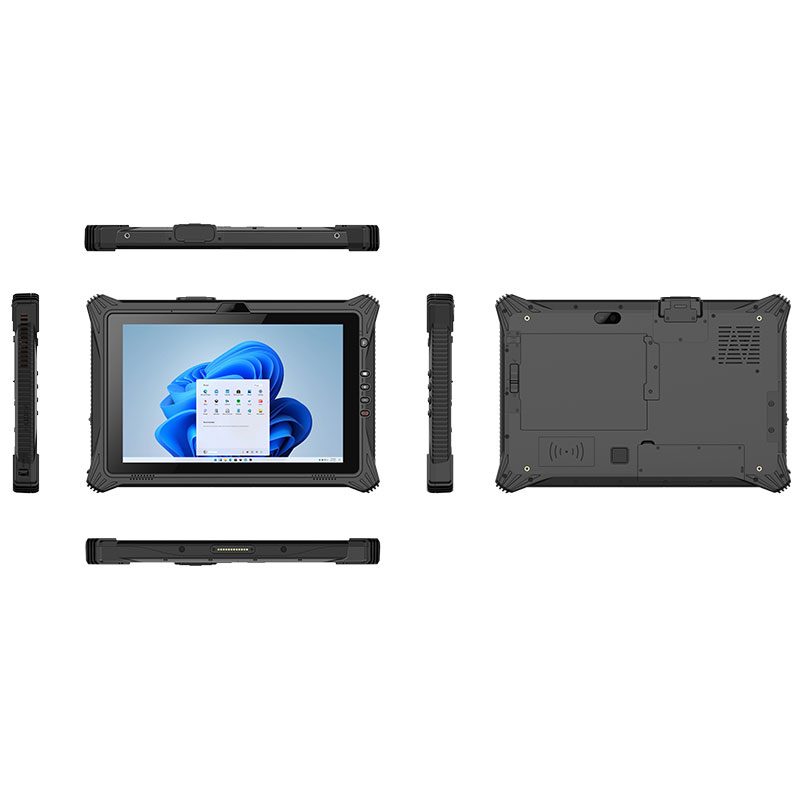

Other Pictures
· Specifications
| Basic Parameters |
| Dimension | 289.9 x 196.7 x 27.4 mm |
| Device Color | Black |
| Weight | 1230g |
| LCD | 10.1 inch IPS 16:10, 1200×1920, 700 nits |
| Touch Panel | 10 point G+F+F capacitive touch screen |
| Camera | Front 2.0MP Rear 8.0MP |
| I/O | USB 3.1 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 2.1a Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| Battery |
| Capacity | 7.4V/860mAh |
| RTC Battery | 3V/210mAH |
| Type | Built-in Li-polymer battery |
| Battery |
| Capacity | 7.4V/5000mAh |
| Type | Removable Li-polymer battery |
| Endurance | 4.5hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
| Performance Parameter |
| CPU | Intel® Core™ i5-1235U/i7-1255U |
| OS | Windows 11, Optional Windows 10 |
| RAM | 16GB |
| ROM | 128GB |
| Communication |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G+5.8G) |
| Bluetooth | BT5.1 (Transmission distance: 10m) |
| 4G(Optional) | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
| GNSS | Support GPS, Glonass, Optional Beidou |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m |
| Electrostatic Discharge | ± 8kV contact discharge, ± 15kV air discharge |
| Data Collection |
| Fingerprint | Standard |
| NFC | Optional, 13.56 MHz, Card reading distance: 4 cm |
| 2D | Optional, Optical resolution: 5mil/ scan speed: 50 times/s |
| Extension modules（1 out of 3) |
| Ethernet Interface | RJ45 (10/100/1000M) x 1 |
| Serial Port | DB9 (RS232) x 1 |
| USB | USB 2.0 x 1 |
