- Equipped with the latest Intel Alder Lake Processor N100
- Windows 11 OS, unleash robust production power
- Support 5-point capacitive touch and stylus functionality
- Built-in 2.4GHz and 5.8GHz dual-band Wi-Fi 6
- Bluetooth 5.2 with wider range and faster transfer speeds
- Equipped with 3G/4G module, outdoor signal is still stable
- With USB 3.0, Type-C, and HDMI ports，connect various peripherals
- Equipped with a 5MP front camera and an 8MP rear camera
- Standard GPS+Glonass, optional GPS+Beidou for accurate positioning
- Optional 2D barcode scanning engine supports efficient decoding
- Optional NFC module, supports mainstream NFC card reading applications
- Featured a back panel made of PC material with a TPU frame
- Brand-new cooling system with thermal conductive materials
- IP65-rated dust and water resistance,MIL-STD-810H certified

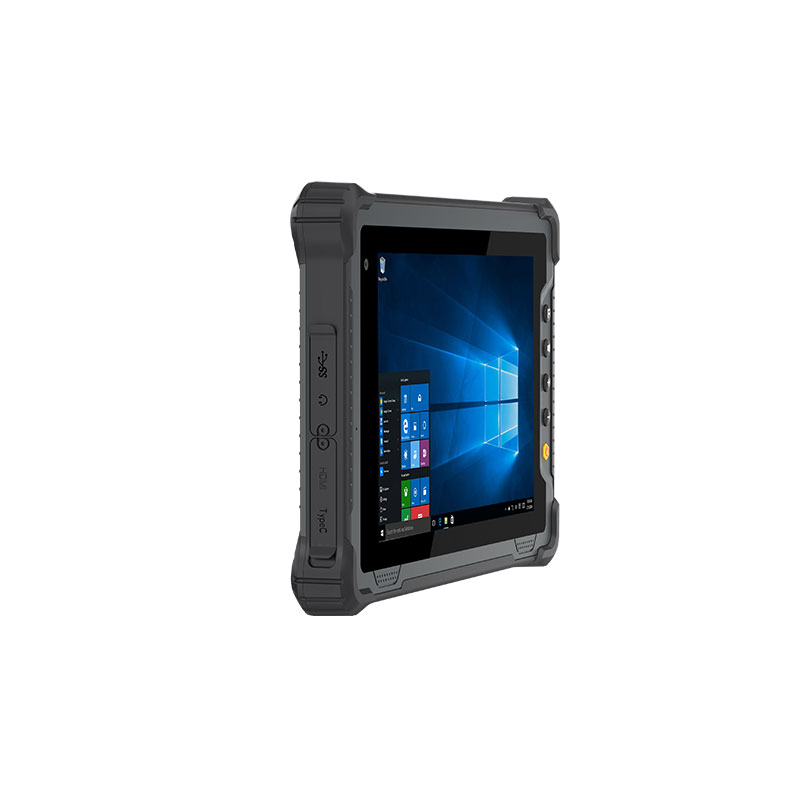

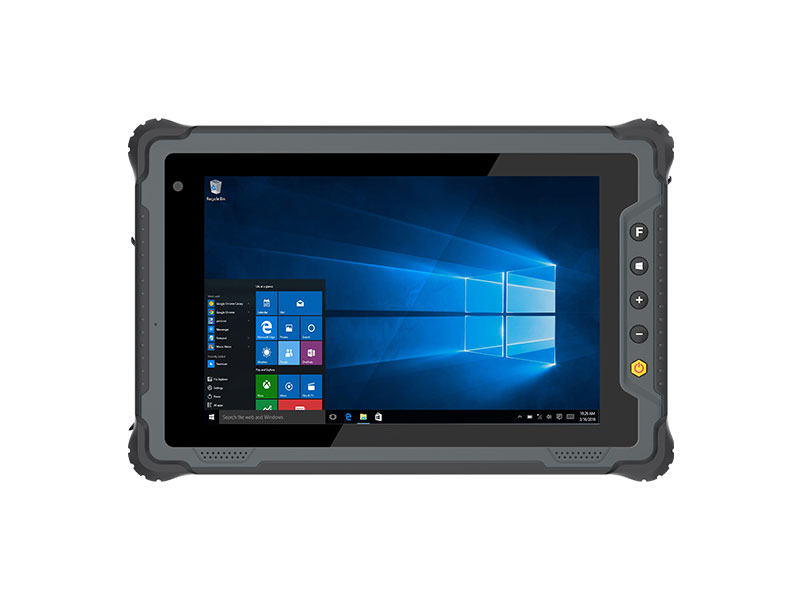

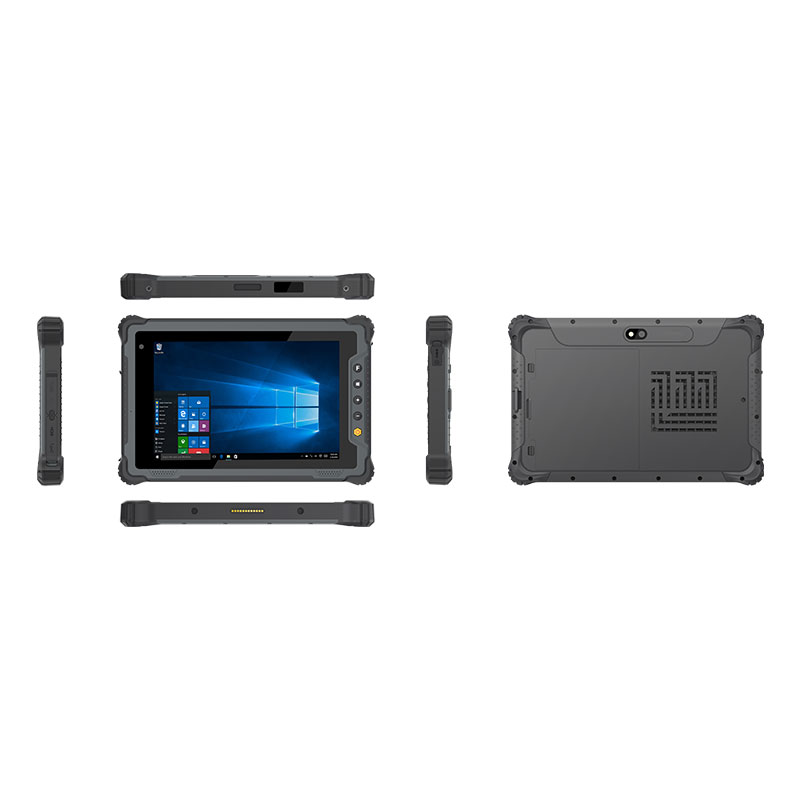

Other Pictures
· Specifications
| Basic Parameters |
| Dimension | 236.7 x 155.7 x 20.8mm |
| Device Color | Caesious |
| LCD | 8 inch IPS 16:10,1200×1920,550 nits |
| Touch Panel | 5 point G+G capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |
| I/O | USB 3.0 Type-A x 1, Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 2.0 Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 12V/4A EU |
| Battery |
| Capacity | 7.6V/5000mAh |
| Type | Removable Li-polymer battery |
| Performance Parameter |
| CPU | Intel Alder LAKE N100 |
| OS | Windows 11 |
| RAM | 8GB |
| ROM | 128GB |
| Communication |
| WIFI | WIFI6 802.11(a/b/g/n/acR2/ax 1×1) frequency 2.4G+5.8G Dual-bandWIFI intel AX101 |
| Bluetooth | BT5.2(BLE) |
| 4G | EURO: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD B38/B40/B41 |
| GNSS | Support GPS+Glonass,Optional GPS+Beidou |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.22m |
| Data Collection |
| Fingerprint | Standard |
| 2D | Optional,resolution: 5mil/scanning speed: 50 times/s |
