- Intel Jasper Lake processor Celeron N5100
- 8 inch IPS screen, 1920×1200 FHD, optional 700nits
- 5-point capacitive touch
- High speed communication as 2.4G+5.8G WIFI, 4G LTE, BT5.0 and etc
- Efficient file transfer rely on advanced USB Type-A/Type-C 3.0/3.1 I/O port
- Optional high performance 2D imager designed to data capture
- Front 5.0MP + Rear 8.0MP, autofocus with flashlight
- Symmetric speakers. More immersive, more clear
- User-friendly buttons designed for efficient action
- Enhanced rugged corners withstand shock and impact
- IP65 Waterproof and Dustproof, MIL-STD-810G certified
- Removable 5000mAh battery & New battery-free working mode

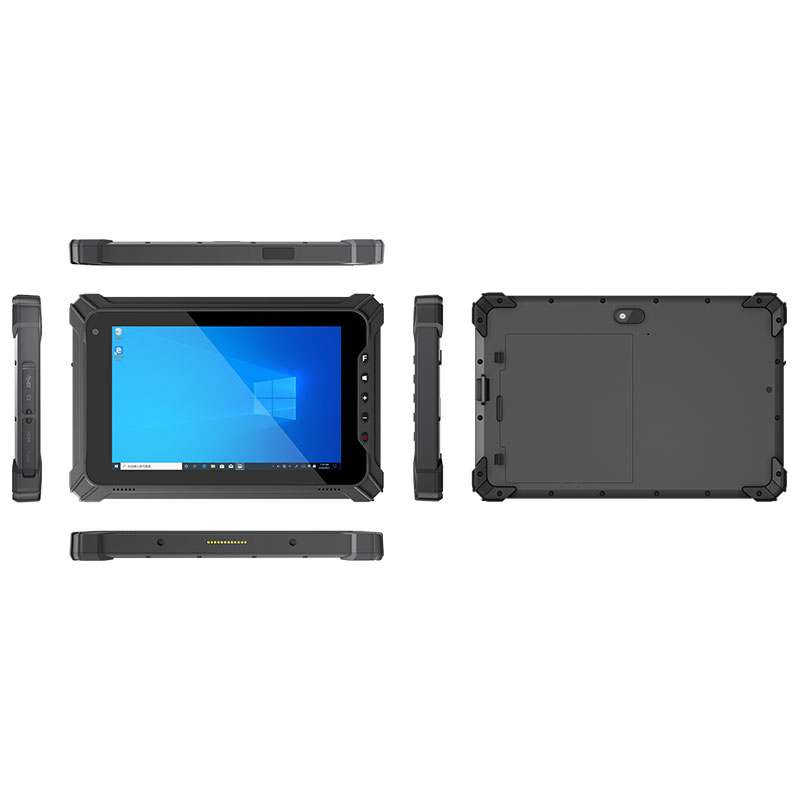

Other Pictures
· Specifications
| Basic Parameters |
| Dimension | 236.7 x 155.7 x 20mm |
| Device Color | Black |
| Weight | 910g |
| LCD | 8 inch TFT 16:10, 1920×1200, 550 nits, Optional, HD, 800×1280, 700 nits |
| Touch Panel | 5 point capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |
| I/O | USB 3.0 Type-A x 1, USB Type-C 3.1 x 1, SIM Card, TF Card (Three in one card holder), HDMI 2.0a Mini x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Power | PD Fast Charge Adapter Type-C Data Cable(1m) |
| Battery |
| Capacity | 7.6V/5000mAh |
| Type | Removable Li-polymer battery |
| Endurance | 7hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Performance Parameter |
| CPU | Intel® Celeron® Processor N5100 |
| OS | Windows 10 |
| RAM | 8GB |
| ROM | 128GB |
| Communication |
| WIFI | 802.11 a/b/g/n/ac (2.4G+5.8G) |
| Bluetooth | BT5.0 (Transmission distance: 10m) |
| 4G | LTE FDD: B1/B3/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: B3/B8 |
| GNSS | Support GPS, Glonass |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m |
| Data Collection |
| NFC | Optional, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocol Card reading distance: 4cm |
| 2D | Optional |
