- Equipped with Quad-core Intel JASPER LAKE N5100 processor and running Windows 11 OS, up to 8GB+128GB high-speed capacity.
- 10.1-inch screen, 1000cd/m² high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility.
- 4G LTE, dual-band Wi-Fi and Bluetooth 5.0 connectivity. Multi-satellite systems of GPS/Glonass, with available vehicle mushroom antenna for real-time tracking to your vehicle and asset management.
- With aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and the external 9V-36V DC wide voltage module is optional.
- Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery.
- Available multiple navigation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.
- Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces.
- IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature.

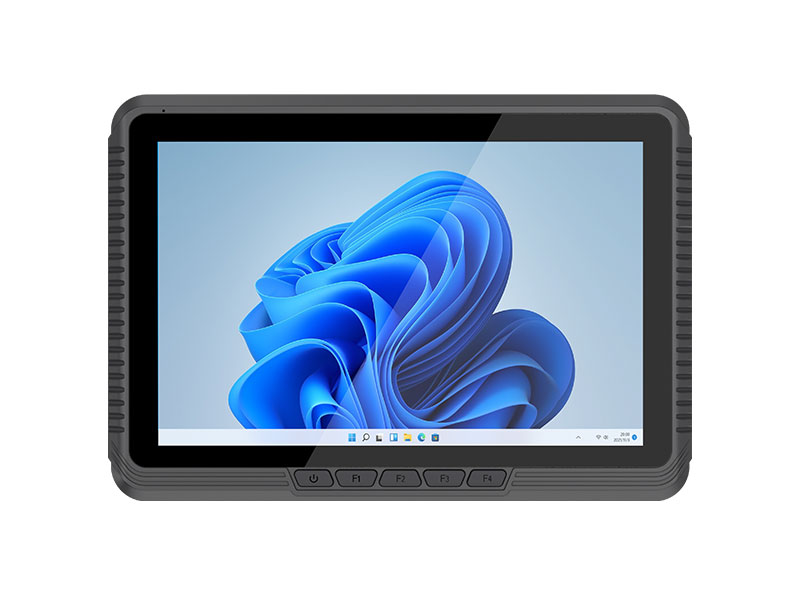

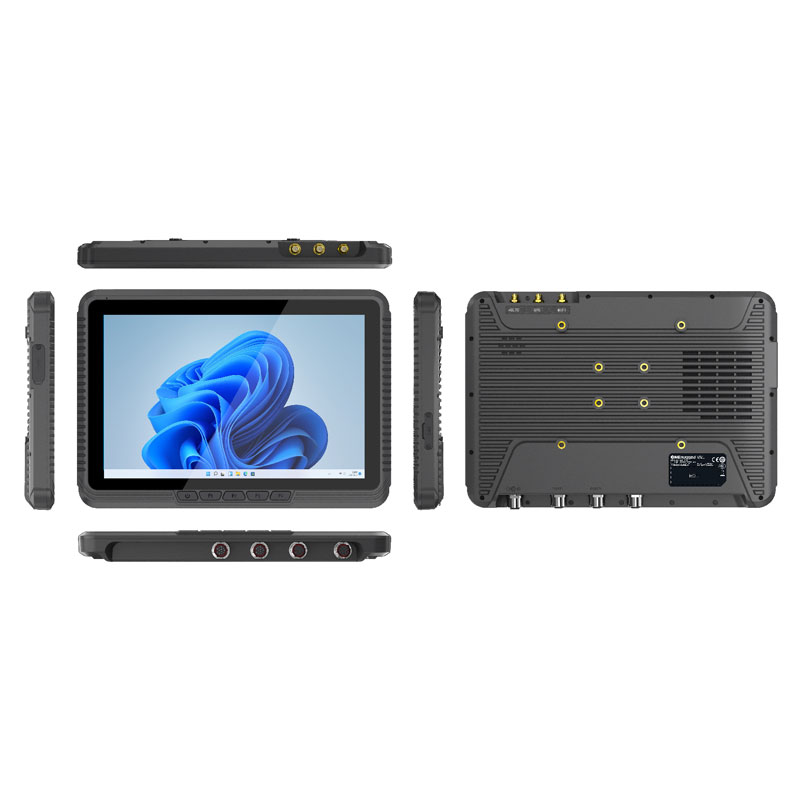

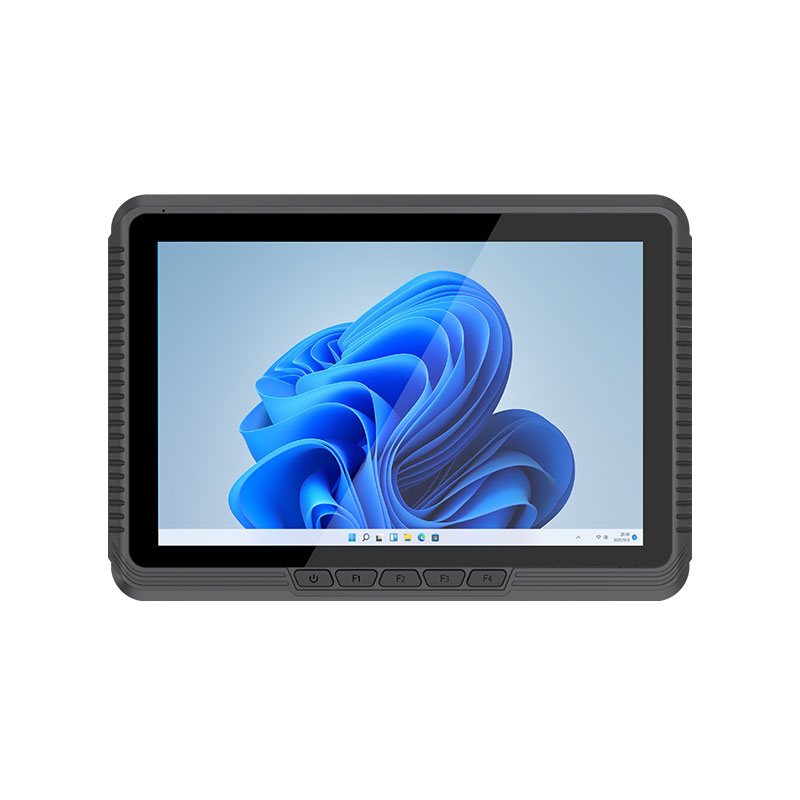

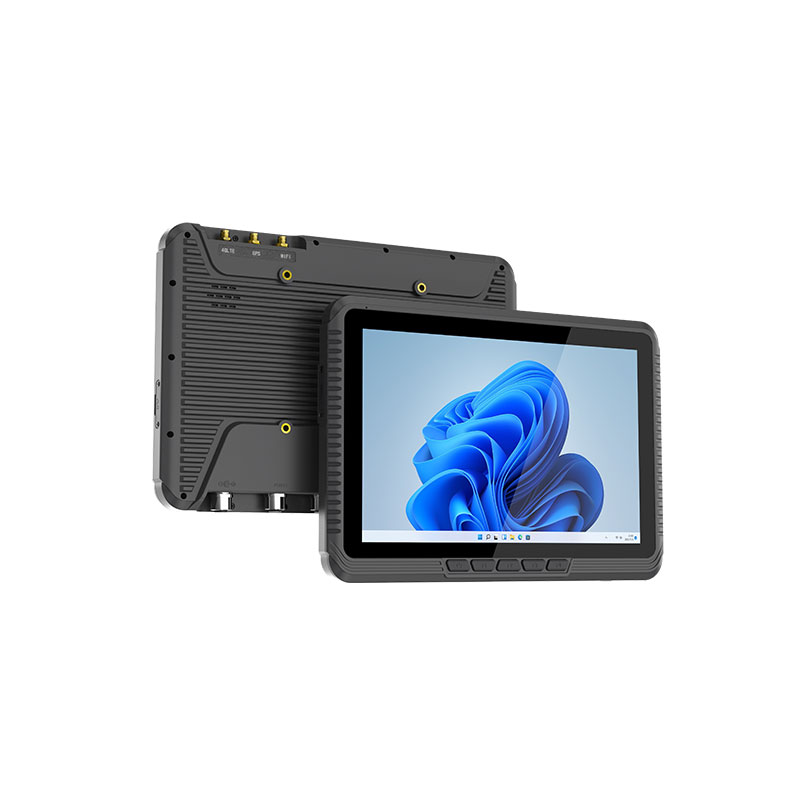

Other Pictures
· Specifications
| Basic Parameters |
| Dimension | 264.5 x 184.1 x 23.0 mm |
| Weight | 834g |
| Device Color | Black |
| Display | 10.1 inch HD 16:10, 800*1280 IPS, 1000nits |
| Touch Panel | 5-point tempered glass capacitive screen G+G, Hardness above 8H |
| I/O | SIM card slot (optional) Standard USB-A port DC input (Input: 11~24V), PORT1 (M12-12) (optional) 1000M network interface PORT2 (M12-12) (optional) RS232 *1+RS232/RS485 *1， PORT3 (M12-12) (optional) USB 2.0 *2+USB 2.0 (Default) / CAN*1 USB2.0 standard interface *2; Optional CAN for customer debugging |
| Buttons | Power *1 Volume Adjustment Key (+) *1 (F1 Key) Volume Adjustment Key (-) *1 (F2 Key) Customizable *1 (F3 Key) Customizable *1 (F3 Key) |
| Speaker | 1.5W *1, Single horn (max 2W) |
| Adapter | 19V 3.42A Cigarette Lighter Adapter 12V 4A DC Φ5.5 power adapter |
| Battery（Built-in） |
| Capacity | Built in polymer lithium ion battery 1000mAh/7.4V Built in 2032 RTC dry battery |
| Performance Parameter |
| CPU | Intel JASPER LAKE N5100 |
| GPU | Intel® HD Graphics Gen 11 LP |
| OS | Windows 11 Home Windows 11 PRO (Optional) Ubuntu22.04.4 (Optional) Ubuntu22.04.6 (Optional) |
| RAM | 8GB LPDDR3 |
| ROM | 128GB EMMC |
| Communication |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G |
| Bluetooth | BT5.0 (BLE) class1 (Transmited distance: 10m) |
| 4G (Optional) | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
| GNSS | Built in, Ublox 7 supports GPS, GLONASS |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Certification | IP65 certified |
| Data Collection |
| NFC (Optional) | NXP300 |
