- Equipped with ARM octa-core processor and Android 12 operating system, up to 4GB+64GB high-speed capacity.
- 10.1-inch screen with 1000-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility.
- 4G LTE, dual-band Wi-Fi and Bluetooth 5.2 connectivity. Multi-satellite systems of GPS/Glonass/Beidou, with vehicle mushroom antenna for real-time tracking to your vehicle and asset management.
- With aviation plug charging interface, switchable for cigarette lighter interface or Φ4.0 power port, and the external 9V-36V DC wide voltage module is optional.
- Supports the battery-free mode, another optional 3.7V/2000mAh capacity battery.
- Available multiple navigation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.
- Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces.
- IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature.

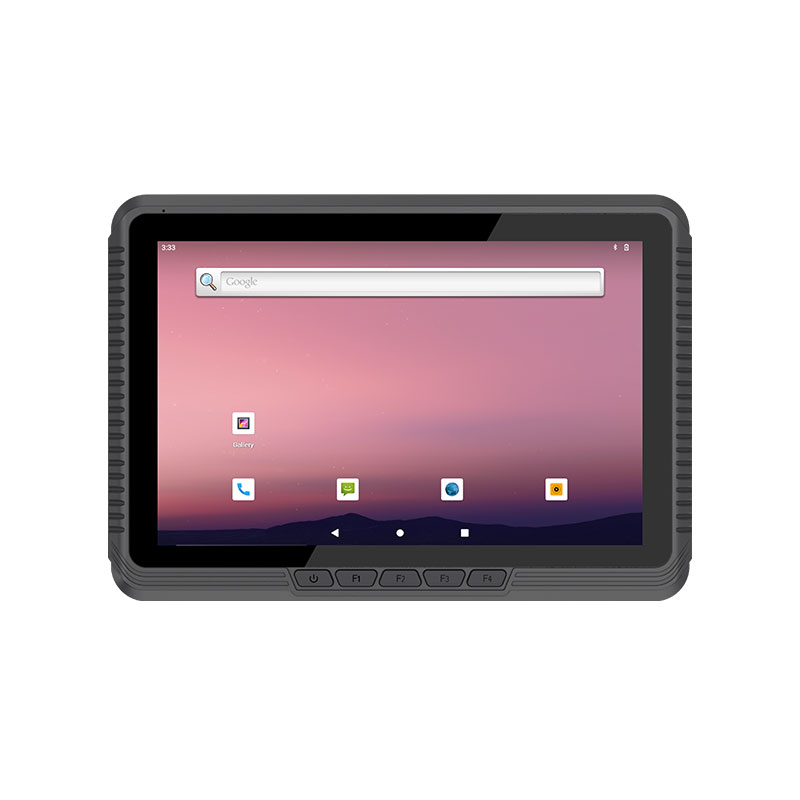

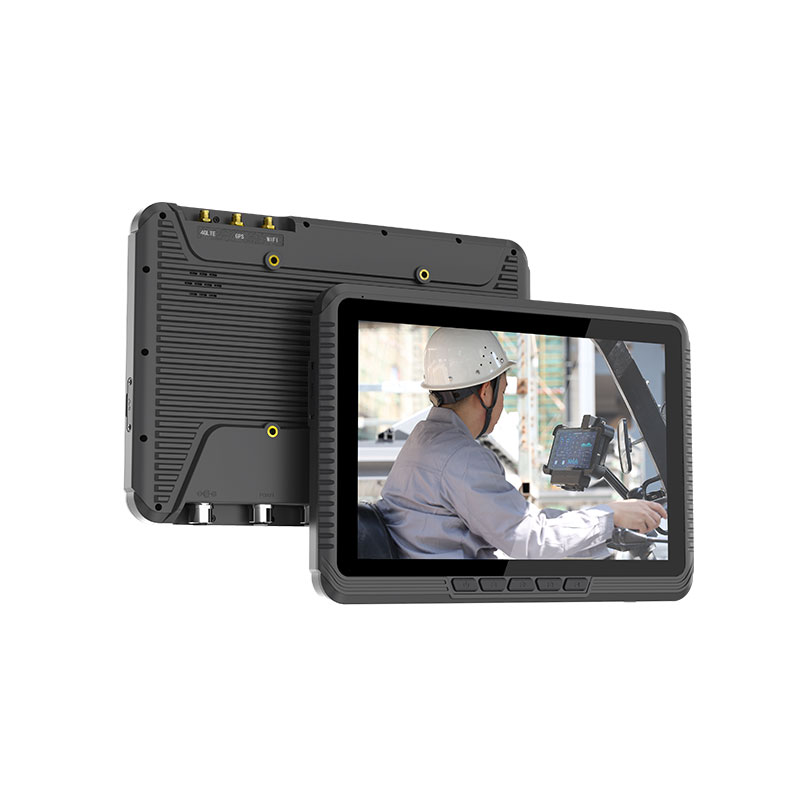

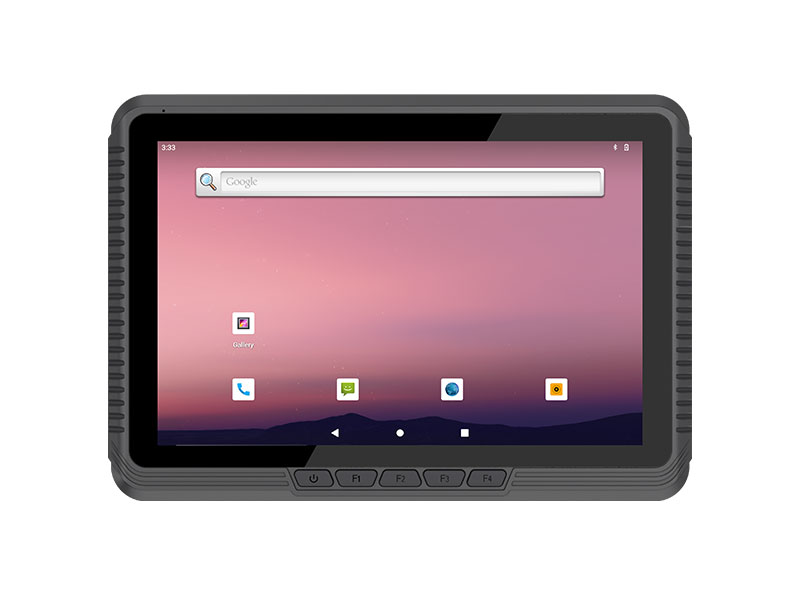

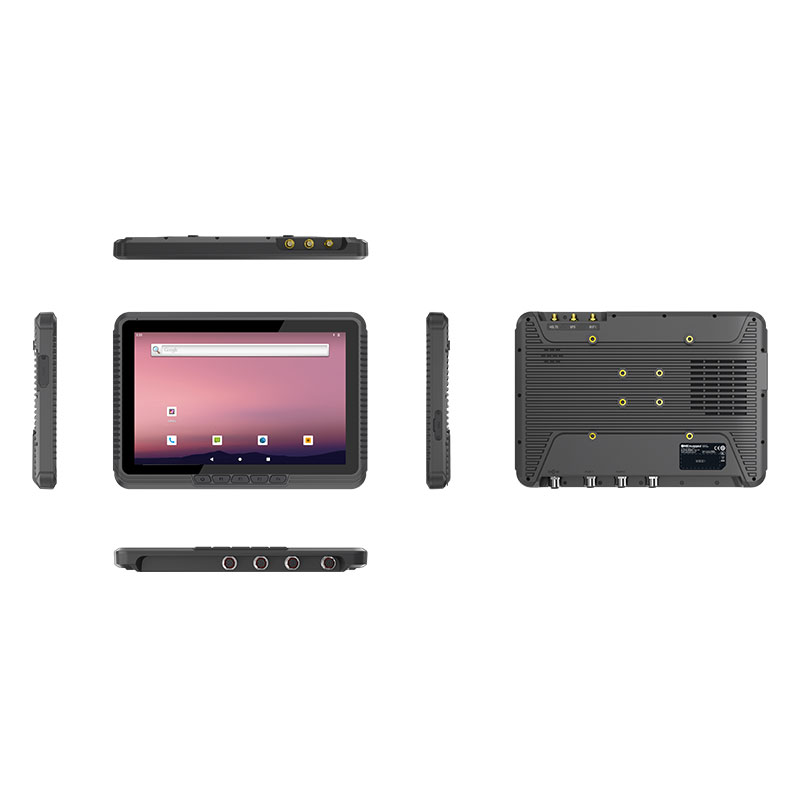

Other Pictures
· Specifications
| Basic Parameters |
| Dimension | 264.5 x 184.1 x 23.0 mm |
| Weight | 834g |
| Device Color | Black |
| Display | 10.1 inch HD 16:10, 800*1280 IPS, 1000nits |
| Touch Panel | 5-point tempered glass capacitive screen G+G, Hardness above 8H |
| I/O | SIM card slot (optional) Standard USB-A port DC input (Input: 11~24V), PORT1 (M12-12) (optional) 1000M network interface PORT2 (M12-12) (optional) RS232 *1+RS232/RS485 *1， PORT3 (M12-12) (optional) USB 2.0 *2+USB 2.0 (Default) / CAN*1 USB2.0 standard interface *2; Optional CAN for customer debugging |
| Buttons | Power *1 Volume Adjustment Key (+) *1 (F1 Key) Volume Adjustment Key (-) *1 (F2 Key) Customizable *1 (F3 Key) Customizable *1 (F3 Key) |
| Speaker | 1.5W *1, Single horn (max 2W) |
| Adapter | 12V 4A DC Φ4.0 adapter |
| Battery（Built-in） |
| Capacity | Built in 2032 RTC dry battery Optional: Built in polymer lithiumion battery 2000mAh/3.7V |
| Performance Parameter |
| CPU | ARM octa-core processor |
| GPU | ARM G57 MC2 |
| OS | Android 12 (optional GMS) |
| RAM | 4GB LPDDR4X |
| ROM | 64GB UFS |
| Communication |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.0G (5.1G+5.8G) Others: Support AP seamless roaming |
| Bluetooth | BT 5.2 isochronous channels feature ▪ BLE_125K -104 dBm |
| 4G | LTE Cat 4 GSM：2+3+5+8 WCDMA：1+2+5+8 TD-S：34+39 TDD：38+39+40+41N(2535mhz~2655mhz) FDD：1+2+3+4+5+7+8+17+20+28a+28b |
| GNSS | Support GPS (L1 1.575GHz C/A code), Beidou(B1 1.561GHz), GLONASS(L1 1.602GHz) |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Certification | IP65 certified |
| Data Collection |
| NFC (Optional) | NFC IC:NXP557 HF band 13.56MHz，compatible with EMVCo standard Support protocols：ISO15693，ISO14443：ISO14443Type A，ISO14443Type B |
